Design Outline for Commercial Meat Mincer for Dog Raw Food
This design outline ensures that the commercial meat mincer for dog raw food is durable, efficient, and user-friendly. Its robust construction, efficient grinding capability, and easy maintenance make it an ideal choice for customers and farmers looking for a reliable meat processing solution
Cabinet Structure
Materials: Precision cast iron body with inlet.
Dimensions: Size 42 (commonly refers to a specific model size in meat mincers, exact dimensions can vary).
Portability: Equipped with removable wheels for easy movement and positioning.
Design: Sturdy construction with a heavy-duty build for handling tough materials like chicken & Rabbit bones and fish meat.

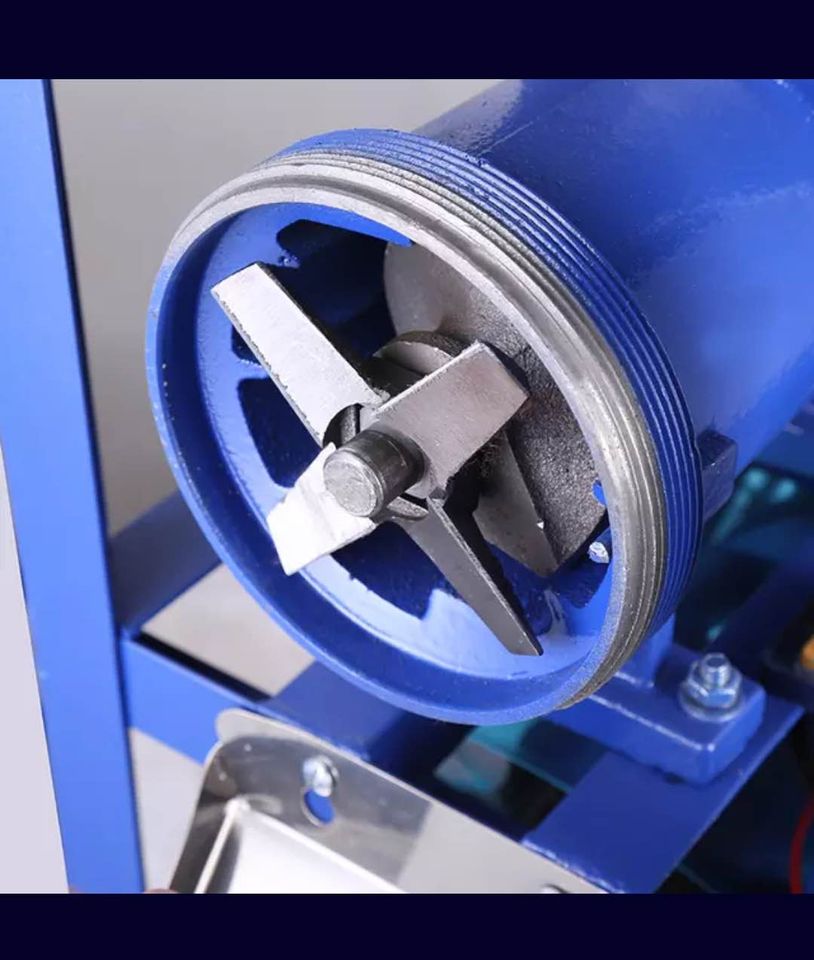

Grinding System
Motor and Belts: Powered by a robust motor with a double belt system for enhanced performance and durability.

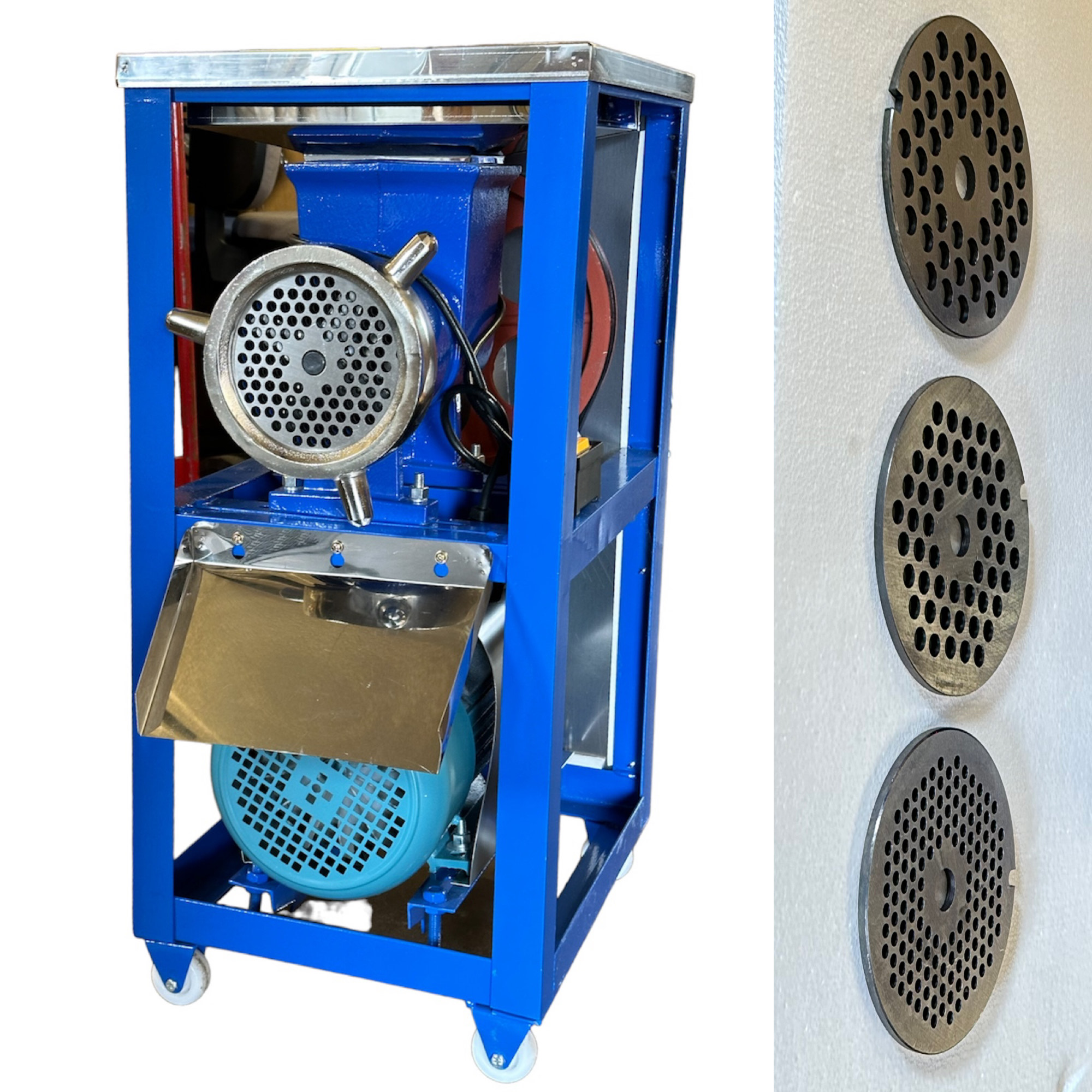

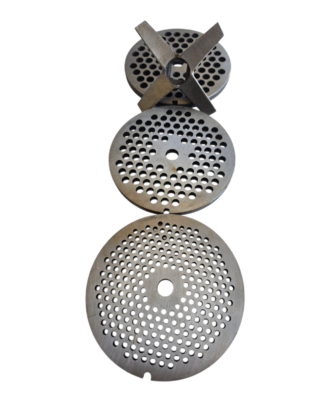

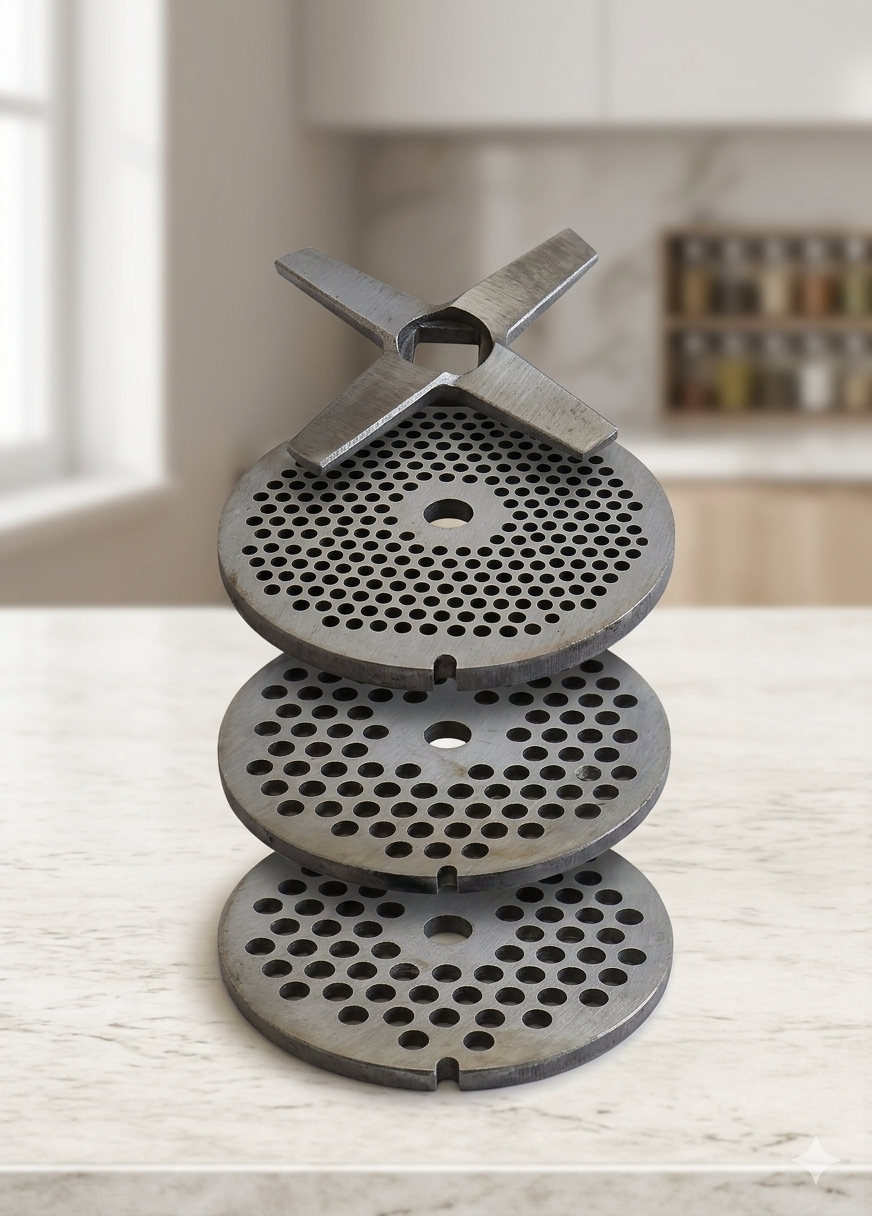

Orifice Plates: Interchangeable orifice plates to adjust the thickness of the minced meat.
Grinding Capability: Capable of mincing chicken bones, fish, and various types of meat efficiently.
Operation and Safety
Control Panel: Simple on/off switch for easy operation.
Safety Features: Includes safety guards and secure locking mechanisms to ensure safe usage.
Mobility: Removable wheels for safe and convenient transportation and storage.
User-Friendly Features
Ease of Use: User-friendly interface with straightforward controls.
Accessibility: Large inlet for easy loading of meat and bones.
Maintenance: Parts are easy to disassemble for cleaning and maintenance.
Hygiene and Maintenance
Materials: Precision cast iron for easy cleaning and hygiene.
Design: Smooth surfaces and removable parts to prevent meat residue build up.
Cleaning: Components like the inlet, orifice plates, and grinding head are easily detachable for thorough cleaning.

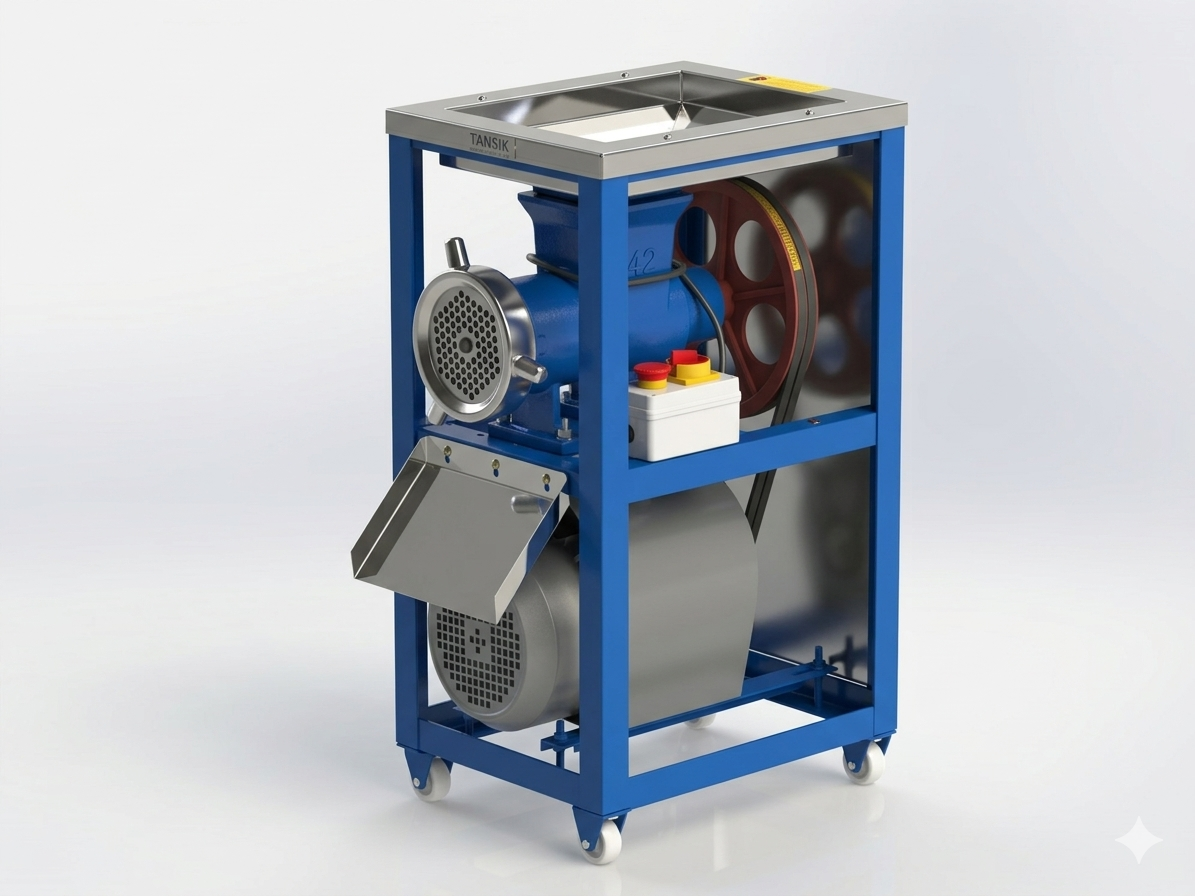

Detailed Line Drawing Description

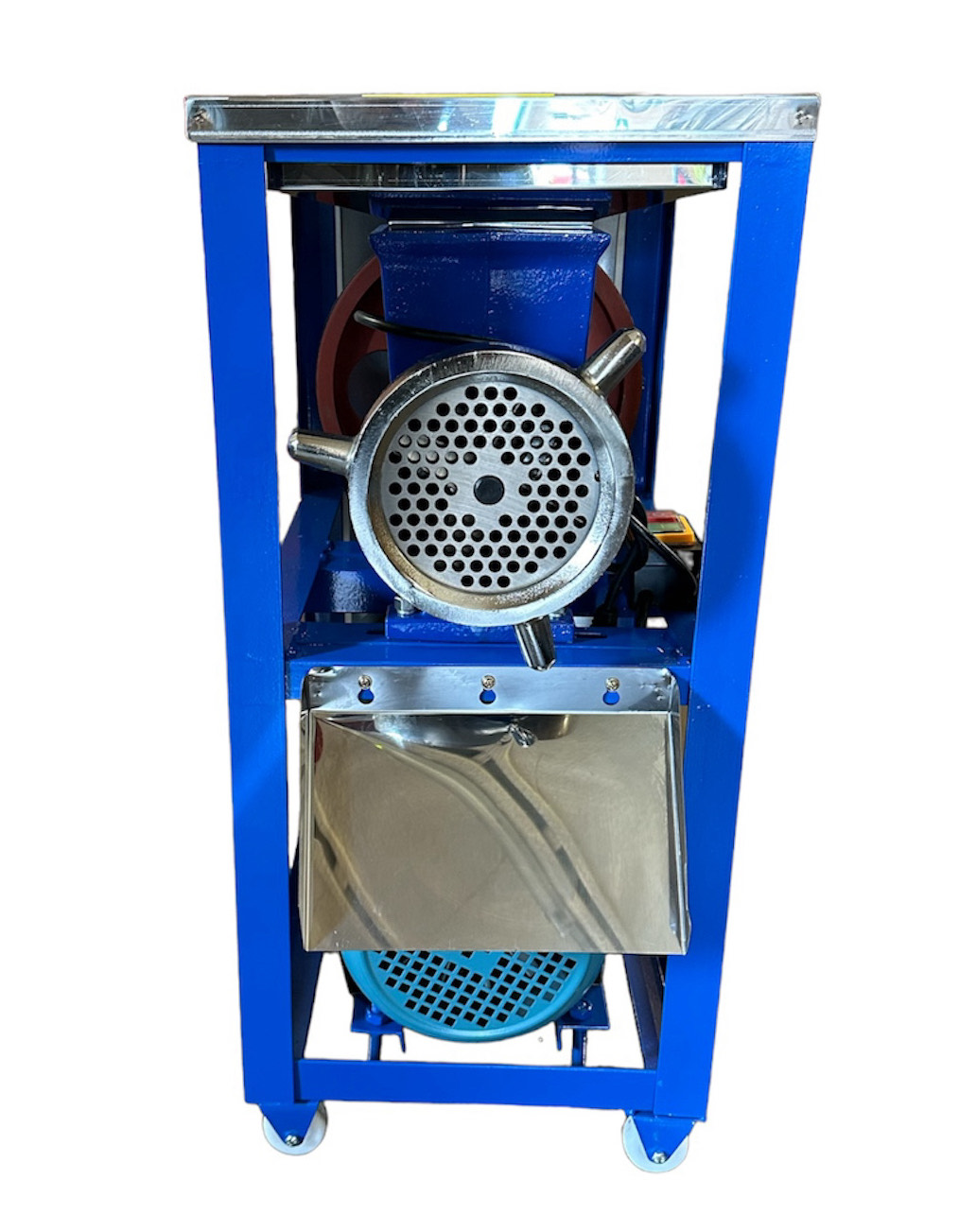

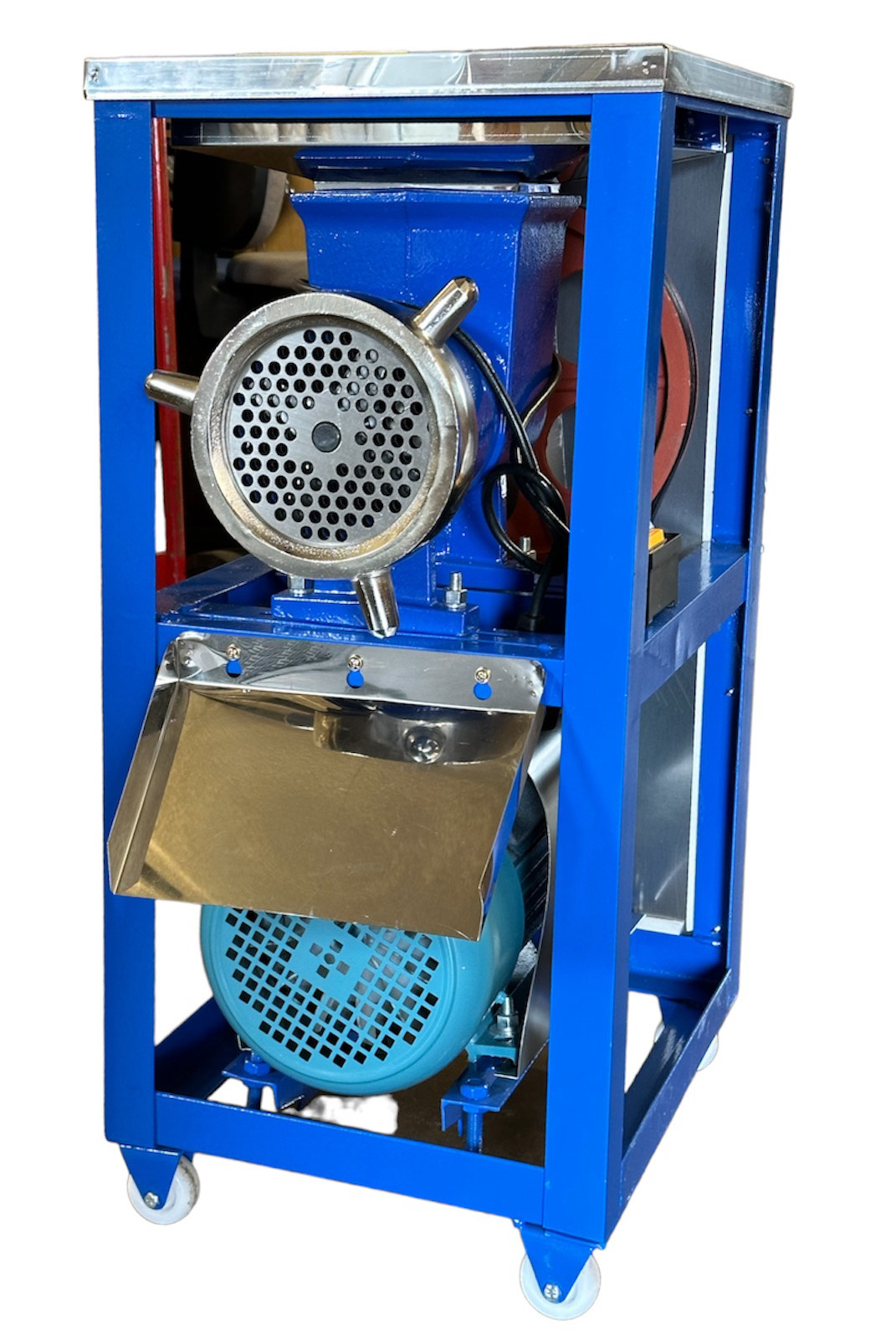

Front View
Cast Iron Body: Durable construction with a robust motor housed inside.
Control Panel: Located at the front with a simple on/off with safety switch.
Orifice Plates: Positioned at the front, interchangeable for varying thickness.

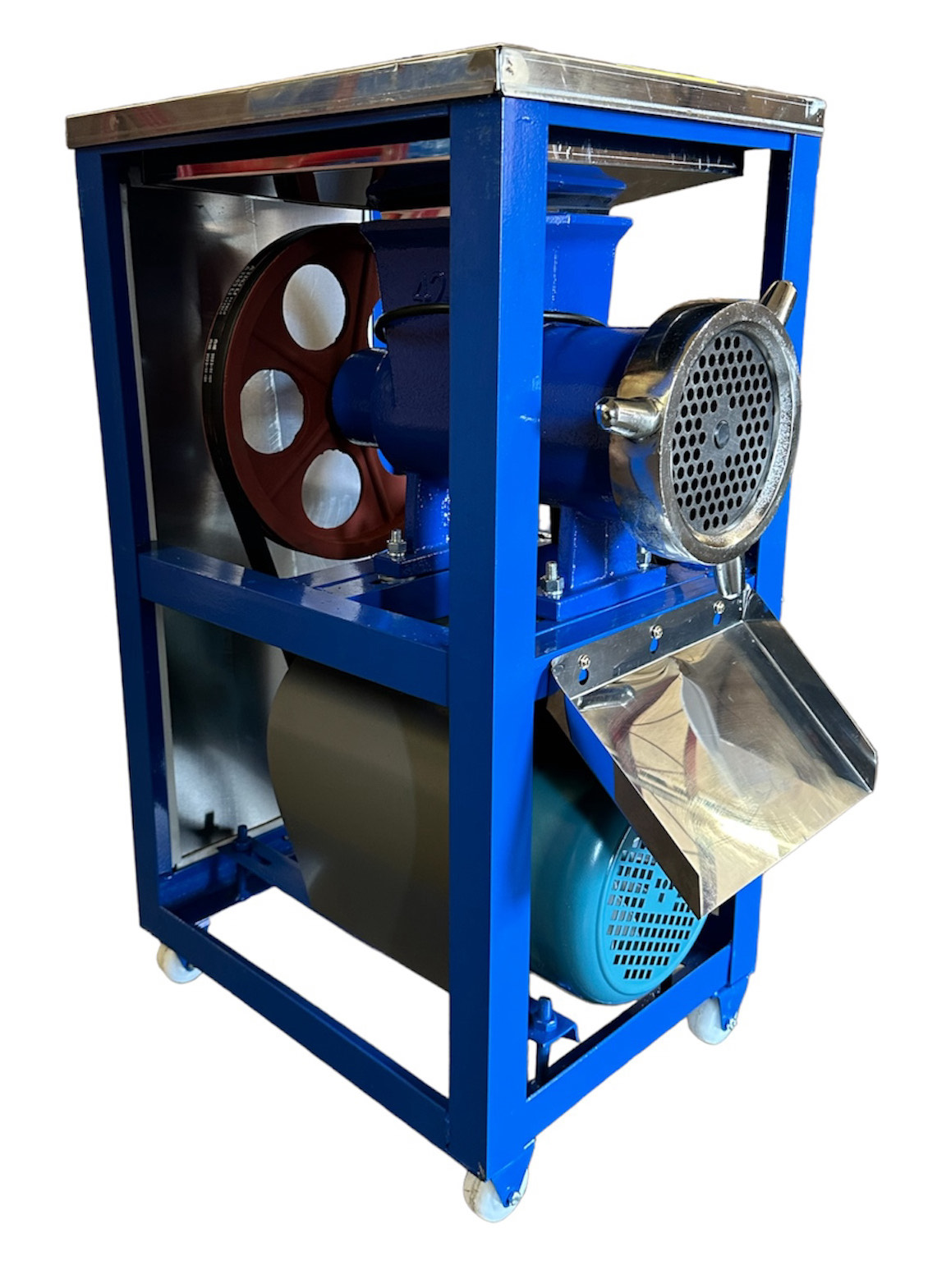

Side View

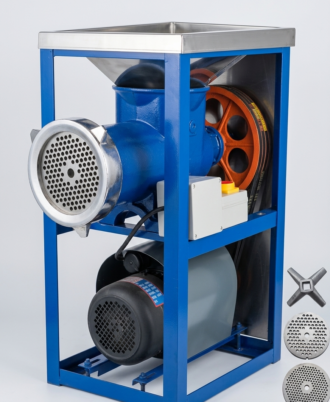

Motor and Belts: Side view reveals the double belt system for efficient power transmission.
Wheels: Removable wheels positioned at the base for mobility.
Top View

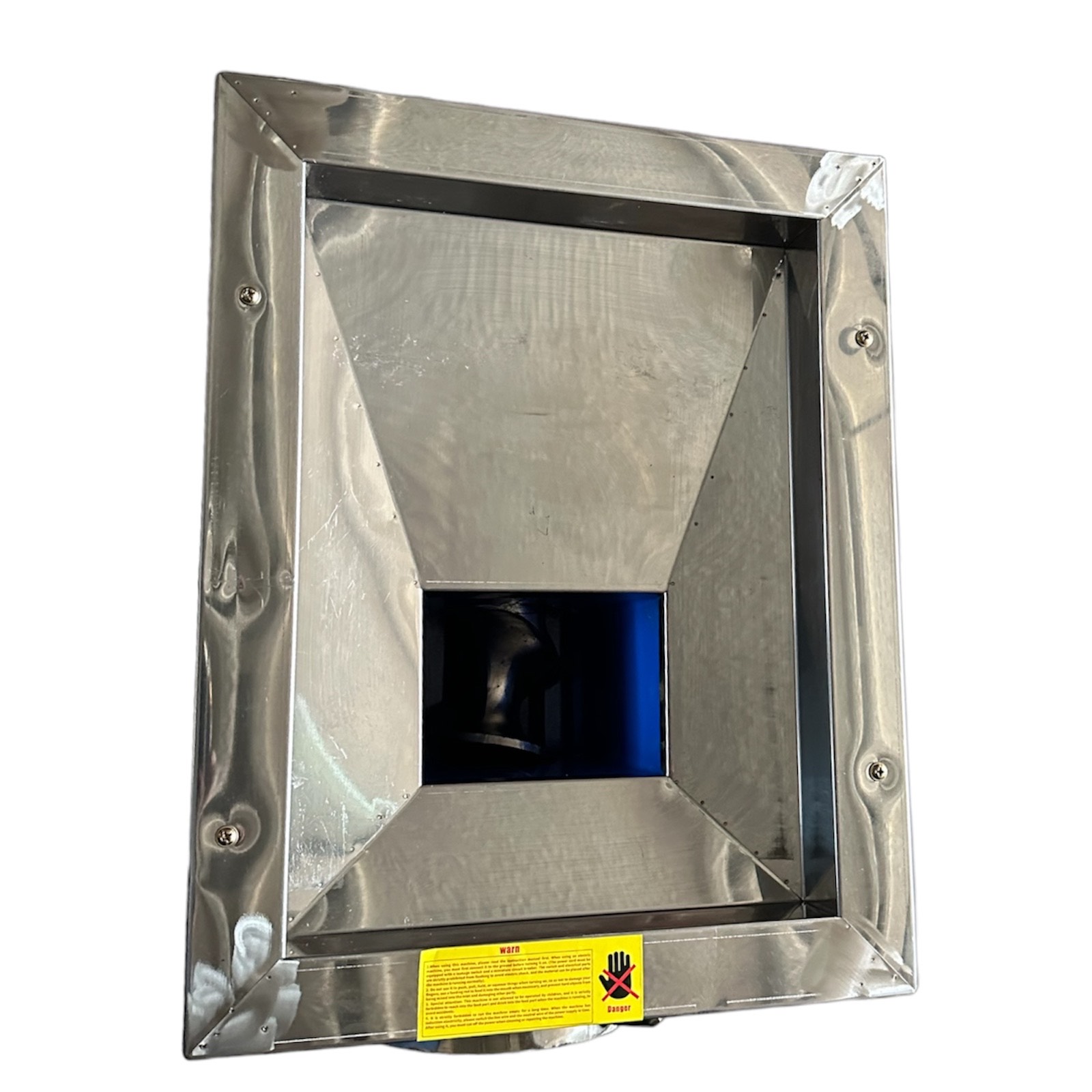

Inlet: Large opening for easy loading of meat and bones.
Control Panel: Accessible from the top view, showing the on/off switch.
Power :3 Kw
UK Normal Pin Plug
41 * 32.5*71.5 cm
